ASUS ROG STRIX GeForce RTX 5070 Ti O16G
Graphics Card - 16GB GDDR7 (28000MHz), NVIDIA GeForce Blackwell (GB203, 2300 MHz), Boost 2625 MHz, PCI Express x16 5.0, 256Bit, DisplayPort 2.1b and HDMI 2.1b, width 332 mm
Show full description
1,239 €
Shop faster with pickup at AlzaBox or in-store.
Add to list
Warranty 36 months
Code:
ECr57tr1
Producer's Website:
ASUS ROG STRIX GeForce RTX 5070 Ti O16G
1,239 €
Currently Unavailable
ASUS ROG STRIX GeForce RTX 5070 Ti O16G
ASUS ROG STRIX GeForce RTX 5070 Ti O16G
The ASUS ROG Strix GeForce RTX 5070 Ti O16G is a graphics card based on the NVIDIA Blackwell architecture with a GB203 chip. The card has 16GB of GDDR7 memory clocked at 28GHz, connected via a 256-bit bus. The base GPU frequency is set to 2300MHz, with a Boost mode of up to 2625MHz. Connectivity is provided by a PCI Express 5.0 x16 interface with DisplayPort 2.1b and HDMI 2.1b outputs, which support up to four monitors.
GDDR7 / 16GB
Operating memory
PCIe 5.0 x16
Bus interface
1x 16-pin
Additional power
Blackwell
Chip architecture
850W
Recommended PSU wattage
Key features of the ASUS ROG STRIX GeForce RTX 5070 Ti O16G graphics card
- NVIDIA Blackwell architecture with support for DLSS 4.0, Multi Frame Generation and fourth-generation Ray Tracing Cores with full ray tracing and neural rendering support
- 16GB of GDDR7 memory provides ample capacity for demanding game titles, ray tracing, 4K resolution and professional AI applications

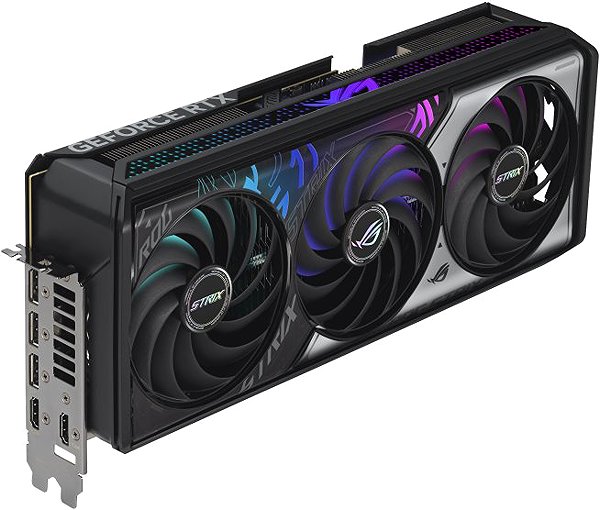

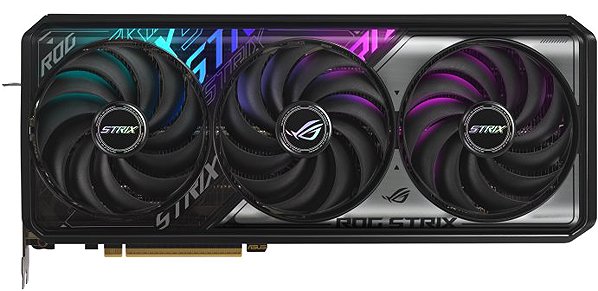

- Advanced cooling system with three dual ball bearing fans and a vapour chamber that ensures efficient heat dissipation
- Premium power delivery with digital control, high-current power stages and 15K capacitors provides sufficient reserves and enables reliable performance boosts
- Vented backplate with large ventilation openings improves heat dissipation, while a shorter PCB with an optimised component layout reduces energy loss and allows heat to escape
Advanced cooling system
The card's cooling system combines a vapour chamber with a phase-change thermal pad on the GPU, which effectively fills the gaps between the chip and the cooling module when heated for optimal heat dissipation. Three axial-tech fans with dual ball bearings ensure powerful airflow, with the side fans rotating in the opposite direction to reduce turbulence. The fans stop at temperatures below 50°C, ensuring silent operation. MaxContact technology increases the contact area with the GPU heat spreader. A shortened PCB with large ventilation openings promotes heat dissipation and reduces performance loss due to heat.
Durable construction and stable power
The card's power is managed by digital control with high-current power stages and 15K capacitors, which provide stable performance even when overclocking. A protective coating on the PCB protects against short circuits caused by moisture or debris. Auto-Extreme technology enables all soldering to be completed in a single pass, which reduces thermal stress on components. ASUS GPU Guard reinforces all four corners of the GPU, reducing the risk of cracking. The mounting bracket is made of stainless steel for high strength and corrosion resistance.
Support for modern graphics technologies
The card features fourth-generation Ray Tracing Cores and fifth-generation Tensor Cores that support AI calculations. DLSS 4.0 technology brings Multi Frame Generation, which increases frame rates, while NVIDIA Reflex 2 with Frame Warp reduces latency based on current mouse inputs. The ninth-generation NVIDIA Encoder accelerates video exporting in professional applications. NVIDIA G-SYNC support ensures smooth, tear-free visuals. The card is compatible with NVIDIA Broadcast technologies for stream enhancement and RTX Video Super Resolution, which improves video quality in browsers.
Customisation and software
Aura Sync compatible ARGB lighting on the shroud and the right edge of the card allows synchronisation with other system components and offers various colour modes including Static, Breathing, Rainbow or Music. GPU Tweak III software provides advanced tuning options for GPU frequencies, memory, and voltage with real-time monitoring.
Technical specification

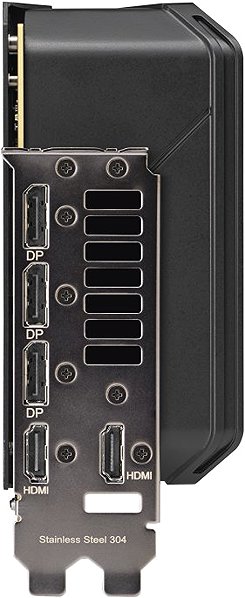

- Monitor connection: DisplayPort 2.1b, HDMI 2.1b
- Dimensions: 332 × 64 × 147.3mm
- Special features: NVIDIA DLSS 4.0
GeForce RTX 50 Series graphics cards
The ultimate platform for gamers and creators
5th generation Tensor Cores
Maximum AI performance with FP4 and DLSS 4
New streaming multiprocessors
Optimised for neural shaders
4th generation RT Cores
Perfect for Mega Geometry
Cutting-edge GPU
NVIDIA Blackwell architecture
AI-enhanced graphics and performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-winning responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-life graphics
Full ray tracing with neural rendering
Digital humans and AI assistants
NVIDIA ACE
Accelerate your creativity
NVIDIA Studio tools and technology for creators
Enhance your voice and video with AI
NVIDIA Broadcast and 9th generation NVIDIA Encoder
Performance and reliability
NVIDIA App with Game Ready and Studio DriversSpecifications
Width
Height
Depth
Chip manufacturer
Model designation
Dimensions
Width
Height
Depth
Chip
Chip manufacturer
Model designation
Graphics processor
Chip architecture
Number of stream processors
Production technology
Performance & usage
Game playing
Memory
Frequency
2,300 MHz
Core clock speed (Boost clock)
Memory frequency
Effective memory clock (bandwidth)
Interface
PCI Express x16 5.0
Bus interface
Technology
Cooling system
Consumption
1x 16-pin
More Specifications
ASUSTek COMPUTER INC. 1F.,No.15, Lide Rd., Beitou Dist., Taipei City 112 Tel: +886-2-2894-3447 Tel: +886-2-2890-7798 https://gr.asus.com/ProductSafety ASUS COMPUTER GmbH Harkortstrasse 21-23 40880 Ratingen Germany, Europe Email: [email protected]
ASUS COMPUTER GmbH, Harkortstrasse 21-23, 40880 Ratingen, Germany, Europe, [email protected]
ASUS is a symbol of the growth of Taiwan's economy. The firm's beginnings date back to April 2, 1989, when as a small manufacturer of motherboards began his work with a few employees. Today, Asus employs more than 12,500 employees worldwide.
ASUS products can be found in almost every category of the information technology marketplace. ASUS is focused on desktops, laptops, phones, optical drives and components. In the manufacture of motherboards, the company is now the dominant player with a staggering 40% market share.
Note:
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
