GIGABYTE B860M DS3H
GIGABYTE B860M DS3H

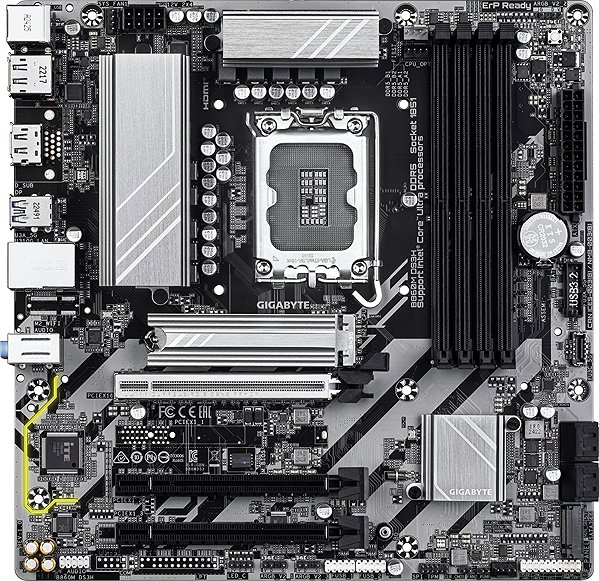

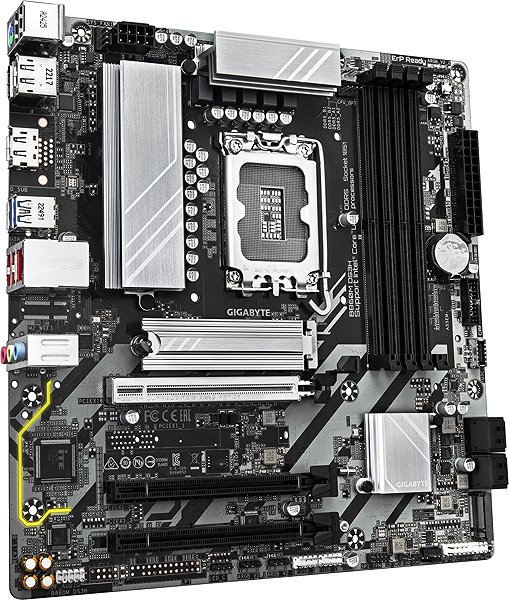

The GIGABYTE motherboard is built on the Intel B860 chipset, which has the Intel 1851 socket for the CPU. Classically, it has a sound card for 8,0 channels. It combines compact dimensions with an adequate number of adaptors for the optimal home computer setup. If you want to build a PC with this particular motherboard model, you'll require a compatible mATX (Micro ATX) format PC case.
GIGABYTE B860M DS3H Motherboard Key Features
- Intel 1851 socket and uses Intel B860 chipset
- GIGABYTE B860M DS3H format: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
GIGABYTE B860M DS3H Motherboard Connectivity
Computer memory is absolutely essential, so this GIGABYTE motherboard is equipped with 4 RAM slots. It's compatible with DDR5 type DIMM operating memory. You can link them in dual-channel mode. The motherboard supports models with a clock speed of up to 9066 MHz.
GIGABYTE B860M DS3H Connectivity
This motherboard accommodates 3 graphics cards with PCI Express 16x slots. The internal interface also has a total of 2 popular M.2 connectors. In terms of USB adaptors, it has 3 × USB 2.0, 2 × USB type 3.0 (3.1 gen1) and 1 × of the fast 3.1 (3.1 gen2) type ports.

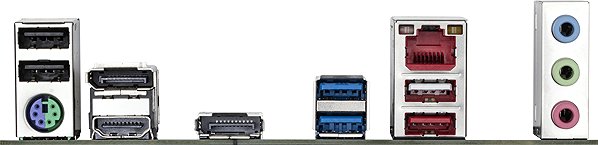

- Supported external communication interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, HDMI 2.1 and DisplayPort 2.1
- Internal interfaces: RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x1 and Serial ATA III
- Maximum supported RAM clock speed: 9066 MHz
- SATA III: 4 ×
Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected]
Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
