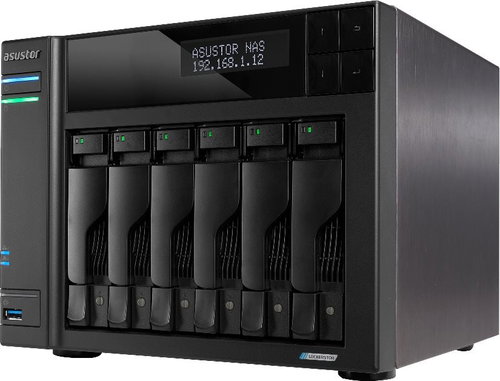

Asustor Lockerstor 6 Gen2-AS6706T
Asustor Lockerstor 6 Gen2-AS6706T
The Asustor Lockerstor 6 NAS storage device is for reliable data backup, file centralisation, and smooth application performance in home and business environments. The device is powered by a quad-core Intel Celeron N5105 processor with a frequency of 2.0GHz, which can increase its clock speed to 2.9GHz in burst mode, delivering 31% more performance compared to the previous generation of Gemini Lake processors. The 8GB DDR4 system memory is expandable up to 16GB for demanding multitasking operations.
Key features of the NAS Asustor Lockerstor 6 Gen2-AS6706T
- Quad-core Intel Celeron N5105 processor with a frequency of up to 2.9GHz ensures fast data processing
- Four integrated M.2 NVMe slots for system acceleration with SSD cache
- Two 2.5GbE network ports support link aggregation to exceed standard speeds
- USB 3.2 Gen 2 interface transfers data at speeds of up to 10Gb/s
- ADM system includes hybrid PQC encryption to protect against future security threats
- MyArchive technology for easy creation of encrypted portable backups
- Btrfs file system support enables the creation of up to 256 snapshots for data recovery
Network connection and port aggregation
The device offers two 2.5 Gigabit Ethernet ports, which significantly speed up file transfers compared to standard gigabit networks. With support for SMB Multichannel technology, the Asustor Lockerstor 6 network storage combines the speed of both Ethernet ports to achieve higher read and write throughput. Demanding users can take advantage of the flexible PCIe slot, where an optional 10GbE network card can be installed.
M.2 slots for NVMe SSD cache and storage
This device contains four M.2 NVMe drive slots that accelerate the system using SSD cache or serve as a separate storage space. The PCIe 3.0 interface provides double the performance compared to the older PCIe 2.0 standard. The manufacturer has integrated enhanced cooling for the sensitive SSD components, which helps maintain optimal operating temperatures even under continuous load, without the need for screws during installation.
USB 3.2 Gen 2 interface
On the body of the network storage device are two USB 3.2 Gen 2 ports, reaching transfer speeds of up to 10Gb/s. This specification enables fast data backup to external drives in half the time compared to the older USB 3.2 Gen 1 standard. Two standard USB 3.2 Gen 1 ports are also available for connecting other peripheral devices or uninterruptible power supplies.
Optimisation for content creators
The network storage supports direct editing of 4K video files via Adobe Premiere Pro or Final Cut Pro software. Users can synchronise local folders with Adobe Creative Cloud, which simplifies project backup and team collaboration. Additionally, hardware decoding provides smooth transcoding of 10-bit 4K H.265 video for instant playback.
Quantum-resistant cryptography
The ADM operating system brings integrated support for hybrid TLS encryption using post-quantum cryptography (PQC). The system automatically activates security using Kyber and X25519 algorithms when connecting via TLS 1.3, without requiring complex configuration. This technology protects stored data from future decryption threats posed by quantum computers.
Backup and ransomware protection
The Snapshot Center application uses the Btrfs file system to create up to 256 snapshots of a single volume at regular five-minute intervals. In the event of a ransomware attack or accidental data deletion, the system can be easily restored to a previous state. Additionally, MyArchive cold backup technology turns hard drives into portable storage media with AES-256 encryption.
Design:
Tower
Number of drive bays (2.5" and 3.5"):
6.0
Processor:
Intel Celeron N5105
System memory (RAM):
8 GB
Specifications
Power outlet type
Storage
Performance
Supported disks
Software and services
Power Supply
Interface
Consumption
Dimensions and weight
Package contents
Asustor B.V., Hoofdweg-Zuid 16, 2912 ED Nieuwerkerk ad IJssel, Nizozemsko, [email protected], www.asustor.com
Specifications can be changed without notice. Images are for illustrative purposes only.
