ASROCK X870 Riptide WIFI
ASROCK X870 Riptide WIFI

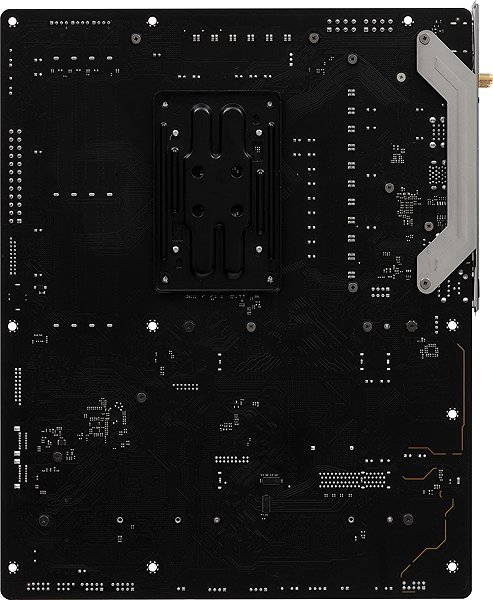

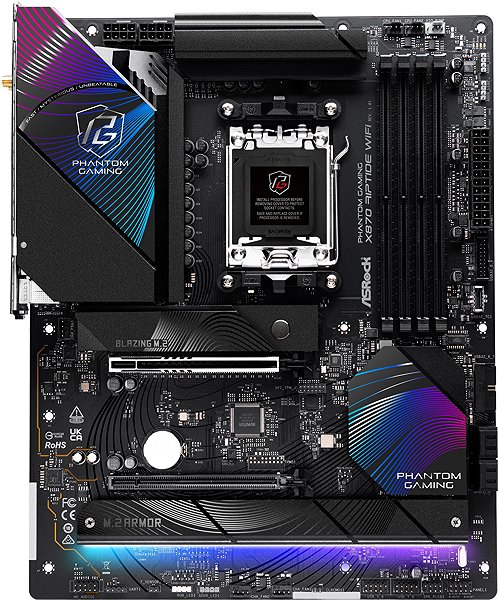

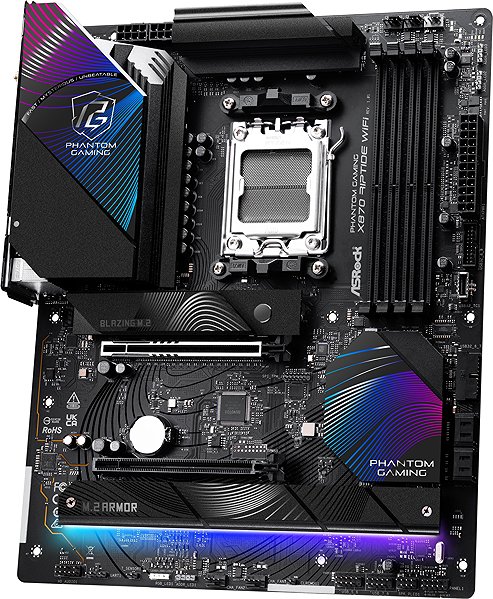

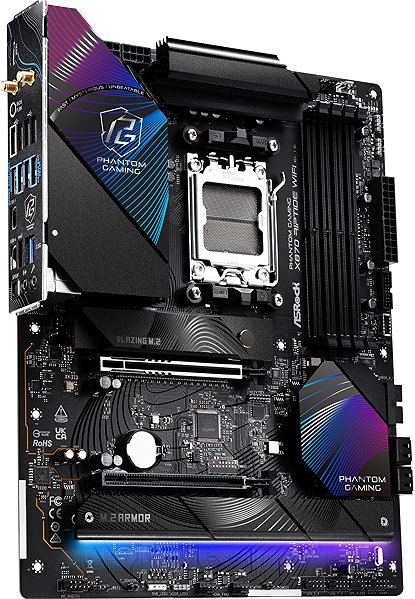

The ASROCK X870 Riptide WIFI motherboard combines an AMD X870 chipset with advanced 14+2+1 phase power delivery, and supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. This ATX format board offers four DDR5 slots with overclocking support up to 8000MHz via XMP and EXPO technologies, a PCIe 5.0 slot for graphics cards and ultra-fast M.2 SSDs, two USB4 ports with a 40Gb/s transfer speed, and advanced networking options including Killer 2.5G LAN and a Wi-Fi 7 module. Thanks to its exclusive 1000μF capacitors with a 20,000-hour lifespan, eight-layer PCB, and a sophisticated cooling system with XXL aluminium heatsinks, it ensures high stability even under demanding gaming and professional workloads.
AMD X870
Chipset
AMD AM5
Socket
ATX
Format
DDR5
Memory type
4×
Number of RAM slotsKey features of the ASROCK X870 Riptide WIFI motherboard
- Powerful 14+2+1 phase power system with 80A Dr.MOS and exclusive 1000μF 20K capacitors
- Eight-layer PCB ensures stable signal routing and efficient overclocking of DDR5 memory modules up to 8000MHz
- Blazing M.2 slot with PCIe Gen5 x4 support for ultra-fast SSDs with transfer speeds up to 128Gb/s
- Screwless cooling system with XXL aluminium heatsinks and bottom radiators for optimal M.2 drive thermal management
- Two USB4 ports with 40Gb/s transfer speeds, USB PD 3.0 charging support, and 8K display connectivity
- Killer E3100G 2.5G Ethernet and Wi-Fi 7 802.11be module with 6GHz band support reduces online gaming latency
- Reinforced PCIe 5.0 slot with a steel frame for secure installation of high-performance graphics cards
Powerful power delivery and memory support
The advanced 14+2+1 phase power design with 80A Dr.MOS for VCore and SOC guarantees a stable power supply even for high-performance AMD Ryzen processors. Upgraded 20K Black capacitors with double the capacitance (1000μF) compared to standard solutions deliver a longer lifespan, lower voltage ripple, and a more stable output current. The eight-layer PCB provides stable signal paths and power layers, which reduces temperatures and increases energy efficiency when overclocking DDR5 memory modules to frequencies over 8000MHz.
High-speed storage and expandability
The board offers one Blazing M.2 slot with full PCIe Gen5 x4 support, reaching transfer speeds of up to 128Gb/s. Two additional Hyper M.2 slots support the PCIe Gen4 x4 standard with speeds of 64Gb/s. All M.2 slots are fitted with a screwless cooling system featuring XXL aluminium heatsinks and additional bottom radiators, which dissipate heat directly through the PCB and keep SSDs at optimal temperatures even under sustained load. For further expansion, there are four SATA III ports with RAID 0, 1, and 10 support for M.2 NVMe devices.
Next-generation connectivity
USB4 technology provides two rear Type-C ports with 40Gb/s transfer speeds, USB PD 3.0 charging support up to 15W, and the ability to connect 8K monitors at 30Hz. The Lightning Gaming Ports use two different controllers to reduce latency. The front panel Type-C USB 3.2 Gen2x2 connector offers a 20Gb/s speed with a reversible design. Networking equipment includes Killer E3100G 2.5G Ethernet with advanced gaming traffic prioritisation and a Wi-Fi 7 802.11be module with 6GHz band support, Multi-Link Operation, and Bluetooth 5.4.
Audio and aesthetics
The 7.1-channel HD audio codec Realtek ALC4082 with Nahimic Audio technology ensures surround sound for any output device. Separate PCB layers for the left and right channels eliminate interference, and the front connector with Direct Drive technology supports earbuds with an impedance of up to 600Ω. The Polychrome RGB system lets you synchronise RGB effects across all compatible components via four-pin RGB and addressable RGB headers, supporting up to 80 LEDs per strip. Integration with SignalRGB software allows for lighting management, macro configuration, and system parameter monitoring.
User-friendly features
The screwless M.2 heatsink system with a quick-release mechanism simplifies SSD installation. The reinforced PCIe 5.0 slot with a steel frame uses additional anchor points and a stronger latch to securely hold graphics cards and ensure stable signal transfer. An integrated I/O shield simplifies assembly. The BIOS Flashback button lets you update the firmware without needing a processor or memory installed. The Auto Driver Installer feature automatically installs the necessary drivers from the integrated LAN database without requiring an optical drive.
Port selection
Storage
- Number of SATA III: 4
- Number of M.2: 3
- M.2 Slot 1 – M.2 PCIe NVMe Gen5
- 2× M.2 Slot 2 – M.2 PCIe NVMe Gen4
- Features: RAID 0, RAID 1, RAID 10

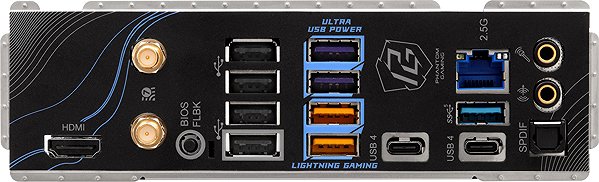

USB ports
- Internal USB 2.0: 4
- Internal USB 3.2 Gen 1: 4
- Internal USB-C 3.2 Gen 2x2: 1
- Rear USB 2.0: 4
- Rear USB 3.2 Gen 1: 3
- Rear USB 3.2 Gen 2: 2
- Rear USB4: 2
Graphics
- HDMI 2.1
- Graphics outputs: HDMI, 2× USB4
Audio
- Number of channels: 7.1
- Rear connectors: 2× 3.5mm, Optical S/PDIF
Other
- Rear: BIOS Flashback, 2× Wi-Fi antenna
- Power: 24-pin, 2× 8-pin
- Cooling: PWM fans (4-pin) – 6×, AIO pump – 1×
- Internal: RGB LED (4-pin), 3× Addressable LED, Temperature sensors
Choosing a motherboard
When choosing a motherboard (or mainboard), it's important to pay particular attention to the socket type, format, and chipset. These are the most crucial parameters, ensuring the board's compatibility with the processor, expansion cards, and other components. The specific socket determines your choice of processor, while the other connectors will dictate which components you need for your future PC build.Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
