Axago RSI-20
This device quickly and easily resolves the problem of connecting an older IDE hard drive or an ATAPI drive via a SATA interface to a PC.
The adapter is purely hardware so its installation is absolutely trivial without the need to install any drivers.
It is designed for all 3.5" ATA 100/133 drives and 5.25" ATAPI CD/DVD drives.
RIGID
DESIGN

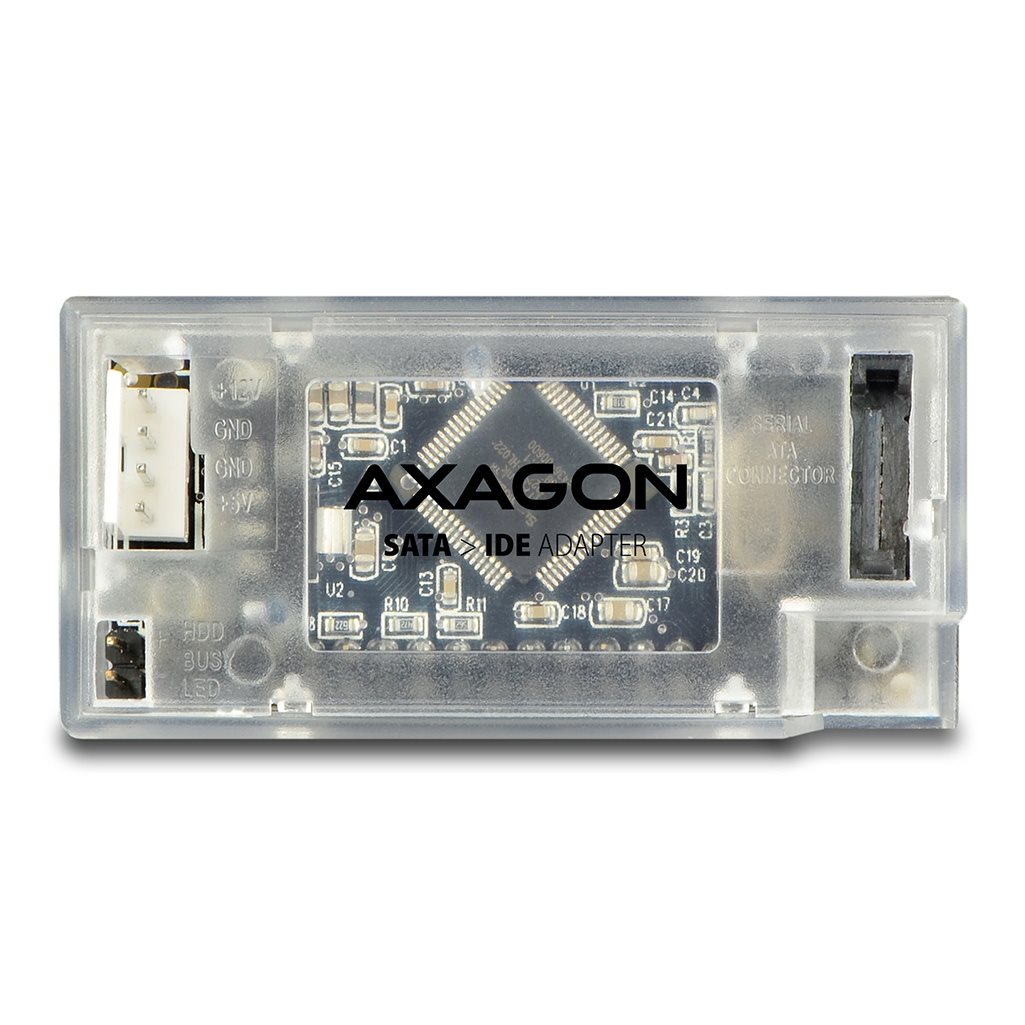

Both the adapter's electronics and connectors are well protected by a rigid plastic case.
DIRECT
CONNECTION
This compact adapter has a 40-pin IDE connector integrated directly in the body and is plugged directly into the IDE port on a drive.
3.5" DISC
CONNECTION
The front panel includes a standard SATA connector for connecting to a PC motherboard SATA controller, a standard 4-pin floppy power connector to a PC power supply, and a connector for connecting a PC housing LED indicator cable to indicate the drive activity.
5.25" DRIVE
CONNECTION
The adapter also supports all standard optical ATAPI CD-ROM, DVD-ROM, CD-RW, combo and DVD-RW drives.
For burners, it may be necessary to set the SATA port for the IDE emulation in the computer BIOS.
Input interface:
1x SATA
Ports:
1x IDE 40-pin (Ultra ATA 133)
1x 4pin floppy (power)
Device support:
3.5" HDD, 5.25" drive
Power supply:
from a PC power supply
Features:
Features a 40-pin IDE interface for 3.5" discs and 5.25" drives.
Supports IDE HDDs and optical ATAPI CD-ROM, DVD-ROM, CD-RW, combo and DVD-RW drives.
Supports all PIO and DMA modes.
Features an Ultra ATA/133 compatible interface.
Plug and play.
Features a standard SATA connector for connecting to a SATA PCB motherboard controller.
Complies with the Serial ATA 1.0a specification with a maximum theoretical data rate of 1.5Gb/sec.
Supports Hot Plug for SATA connectivity.
Powered via a standard 4-pin floppy power connector to a PC power supply.
Features a connector for connecting a PC housing LED indicator cable to indicate the disk activity.
More information:
Dimensions: 61 x 29 x 19mm
Weight: 19g
Supported Operating Systems:
MS Windows all versions, Mac OS all versions, Linux all versions, DOS and all other operating systems.
Note: It is a hardware adapter, no drivers are installed, compatibility is not dependent on the operating system.
Packaging in cardboard box contains:
SATA - IDE adapter and installation instructions in English, Czech, Slovak and Polish.
