PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC

Graphics Card - 96GB GDDR7 (28000MHz), NVIDIA Blackwell (GB202, 1590 MHz), Boost 2288 MHz, PCI Express x16 5.0, 512Bit, DisplayPort 2.1b, width 267 mm
Shop faster with pickup at AlzaBox or in-store.
Add to list
PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC Price has not been set Currently Unavailable

PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC

Planning to buy a professional graphics card that can handle demanding work in 3D environments? Then this dedicated PNY graphics card is for you, equipped with 96GB of memory at a frequency of 28000MHz. With this much memory, a 512-bit bus, and a core frequency of 1590MHz, you can model very demanding 3D models and edit photos and videos without any issues. for connecting to a monitor. This is a DisplayPort 2.1b. The active cooling ensures minimal temperatures even under heavy load.

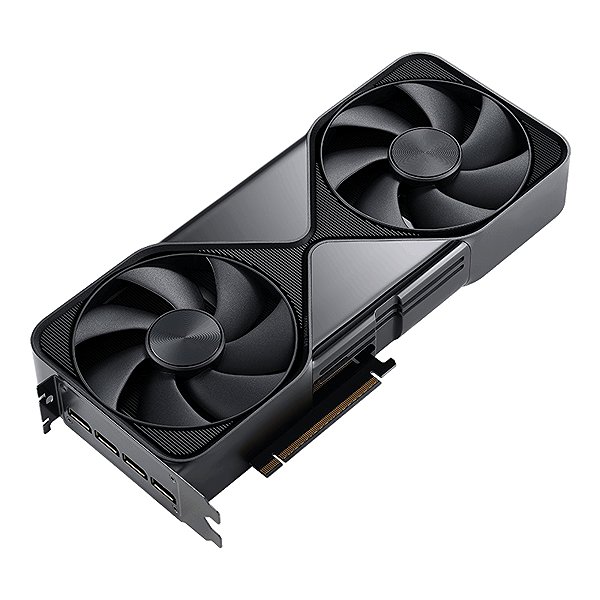

PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC graphics card.
PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC graphics card.

Key features of the PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC professional graphics card

  • The RTX PRO 6000 graphics chip is built on 4nm technology
  • Designed for working with graphics software and modelling
  • The graphics card has a power consumption of 300W
  • The recommended PSU wattage is at least 700W
  • NVIDIA RTX PRO 6000 has a total operating memory of 96GB
  • Graphics card cooling: active
PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC graphics card.

Cooling and dimensions of the PNY graphics card

The active cooling method is popular mainly due to its reliable way of minimising high temperatures. The PNY NVIDIA RTX PRO 6000 Blackwel Max-Q Workstation 96GB GDDR7 ECC has dimensions of 267 × 111mm (W×D). This size should not be a problem for most computer cases.

Specifications

Compare
Chip manufacturer
NVIDIA
Model designation
RTX PRO 6000
Graphics processor
GB202
Chip architecture
Blackwell
Number of stream processors
24,064×

Chip

Chip manufacturer
NVIDIA
Model designation
RTX PRO 6000
Graphics processor
GB202
Chip architecture
Blackwell
Number of stream processors
24,064×
Production technology
4 nm

Performance & usage

Use
Professional

Memory

VRAM capacity
96 GB
Memory type
GDDR7
Bus width
512-Bit

Frequency

Core frequency
1,590 MHz
Core clock speed (Boost clock)
2,288 MHz
Memory frequency
28,000 MHz (28 GHz)
Effective memory clock (bandwidth)
28 Gbps

Interface

PC connection
PCI Express x16 5.0
Bus interface
PCIe 5.0 x16
Monitor connection
DisplayPort 2.1b
Number of image outputs
4

Technology

DirectX version
12 Ultimate
OpenGL version
4.6

Cooling system

Cooling type
Active
Cooling size
Dual-slot
number of fans
1 ×

Dimensions

Width
267 mm
Depth
111 mm

Consumption

TDP
300 W
Auxiliary power supply
1x 16-pin
Recommended power sources
700 W

AI

Total number of TOPS
4,000

Tops

Total number of TOPS
4,000
More Specifications

PNY Technologies Europe, ZAC du Phare 9 rue Joseph Cugnot 33708 Mérignac cedex, France https://www.pny.com/en-eu/support-footer/technical-support

Note:

Specifications can be changed without notice. Images are for illustrative purposes only.
